Description
Brand | Aitek |
Connector Type | Optical |
Cable Type | Fiber Optic, Ethernet |
Compatible Devices | Server |
Special Feature | LSZH (Low Smoke Zero Halogen) |
About this item

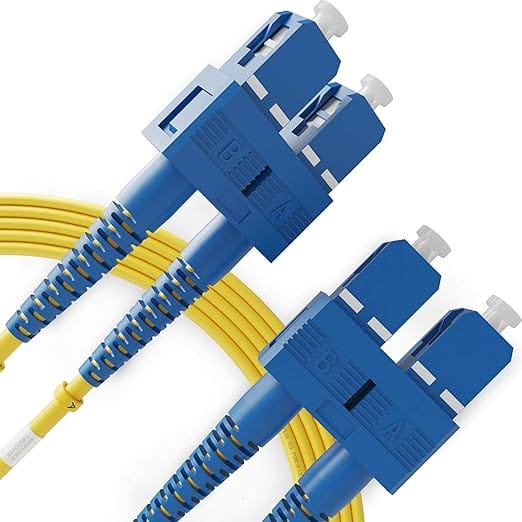

- Beyondtech high-quality SC to SC Fiber Patch Cable Single mode 9/125 OS1 fiber is specially designed for fast Ethernet, Fiber Channel, Gigabit Ethernet Speeds, data center, premises, educational, LAN, SAN, commercial, 10GBASE-L (1310 nm), 10GBASE-E (1550 nm), 1000BASE-LX (1300 nm) and Asynchronous Transfer Mode (ATM) applications. It supports video, data and voice services.
- This fiber OS1 SC SC Fiber Patch Cord conforms with TIA/EIA 492AAAA and IEC60793-2-10 A1b standards and complies with RoHS specifications.
- This SM fiber has an yellow color jacket with a 3.00mm diameter. OS1 cables have a 0.25 dB/km attenuation at 1550 nm and 0.35 dB/km at 1310 nm.
- This SC to SC Single mode Duplex OS1 fiber patch cords operate at -20ºC to +70ºC and have a minimum installation bending radius of 5.0 cm and a minimum long term bending radius of 3 cm.
- OS1 patch cords allow for connections between patching panels and network and server equipment. OS1 9/125 patch cords are commonly used in passive applications (GPON, FTTX and LANs) – SC duplex connectors are joined with a plastic clip, easy to remove in case you need to separate the connectors.
