Description

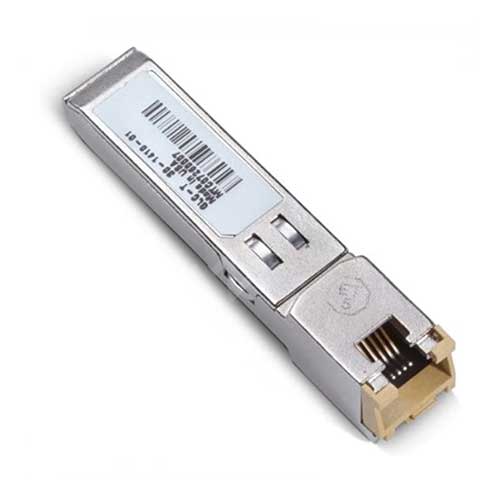

Aitek GLC-T is a 1000BASE-T SFP for Copper Networks. The 1000BASE-T SFP operates on standard Category 5 unshielded twisted pair copper cabling of up to 100m (328 ft) link length. Cisco 1000BASE-T SFP modules support 10/100/1000 autonegotiation and Auto MDI/MDIX. This SFP needs RJ-45 connector (1000BASE-T).
Detail Description
| General | |
| Device Type | SFP (mini-GBIC) transceiver module |
| Form Factor | Plug-in module |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 1000Base-T |
| Data Link Protocol | GigE |
| Data Transfer Rate | 1 Gbps |
| Max Transfer Distance | 328 ft |
| Features | Full duplex capability, auto-negotiation, auto-uplink (auto MDI/MDI-X) |
| Compliant Standards | IEEE 802.3 |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 1000Base-T – RJ-45 |
| Compatible Slots | 1 x SFP (mini-GBIC) |
| Miscellaneous | |
| MTBF | 1,000,000 hours |
| Compliant Standards | CISPR 22 Class A, EN55024, EN55022 Class A, FCC Part 15 A, VCCI Class A |
| Dimensions & Weight | |
| Width | 0.5 in |
| Depth | 2.8 in |
| Height | 0.6 in |
| Manufacturer Warranty | |
| Service & Support | Limited warranty – 90 days |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
