Description

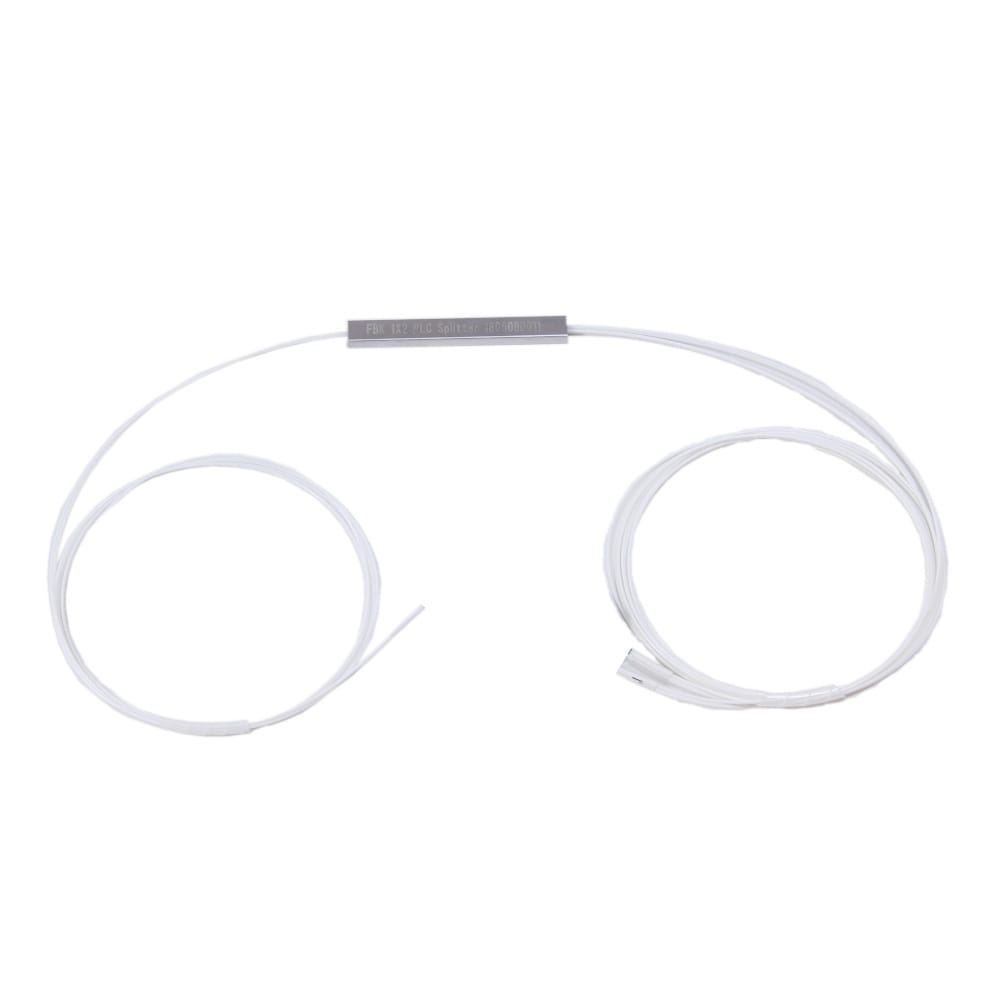

- High Quality PLC design features a protective metal casing around the fibers
- PLC splitting mechanism divides input signal into equal parts across all output fibers
- 900µm loose tube fiber for easy stripping, splicing, or terminating
- Also available pre-terminated with LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC, and ST/UPC
Wave Length: | 1260nm / 1650nm |
Type: | 1 x 2 |
Insertion Loss (dB) Max: | <4.0 |
Uniformity (dB) Max: | <0.6 |
PLD (dB) Max: | <0.2 |
Directivity Min: | 55dB |
Return Loss (dB) Min: | 55 (50) |
Operating Temperature: | <-40 ~ +85°C |
Power Handling: | 300mW |
